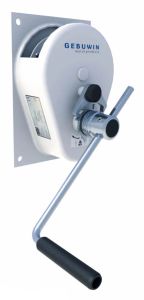

 Worm gear hand winch 250 - 1500 kg

The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.

Availability: In stock
Only %1 left
SKU
GEBUWIN-WW

Maximum 50 characters

 Worm gear hand winch 250 - 1500 kg

The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.

  • Robust construction
  • Primarily used for hoisting, also possible for pulling loads
  • The braking mechanism consists of 50% by the friction in the worm gear transmission and 50% by a load pressure brake
  • Static safety minimum factor 4
  • Adjustable crank and recoil free
  • All rotating parts run in maintenance free bearings
  • The numbers in the product name correspond with the hoisting capacities on the first cable layer. Pulling capacity is approx. 2.5 times the hoisting capacity
  • Cable outlet possible upward, downward and at rear.
  • Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
  • WW1000 and WW1500 are suitable for winch power tool AM5000

Options

  1. GD = Grooved cable drum
  2. EV = Zinc plated finish with a minimum of 6 micron
  3. EX = ATEX certified, for zones 2 and 22
  4. XD = Multiple (X) cable compartments possible
  5. 2D = Twin Drum
More Information
Drive Operation Type 1 Compartment Drum
Colour Black / White
Manufacturer Gebuwin
Country of Manufacture Netherlands
